Engineered for reliable lifting, consistent performance, and demanding industrial operations
The IDMW‑06‑3500 is a rugged 3.5‑ton air winch designed for heavy-duty material handling in industrial settings. Built with a high‑torque air motor, planetary gearbox, and a dual caliper brake system, it ensures reliable lifting with controlled operation. This winch is ideal for environments that demand high load stability, safety, and low maintenance including rigging yards, shipyards, mining operations, and offshore platforms.

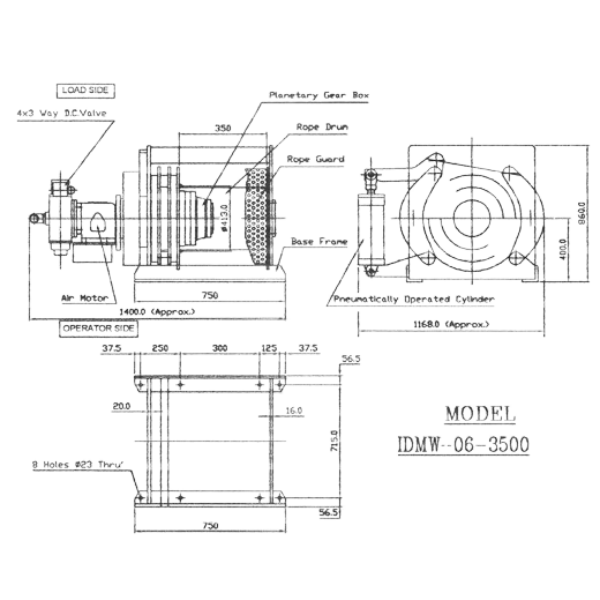

Dimensional Diagram
Key Functional Features
| Gear rotor type air motor for consistent performance and efficient power delivery |
|---|
| Planetary gear box ensuring high torque output with compact design |
| Hand-operated 4×3 way direction control valve for precise operational control |
| Pneumatically operated double caliper brake system for enhanced safety and braking control |
Standard Accessories
- Rope wedge
- 1 1/2″ lubricator
- Foundation bolts – M22 x 110 mm with hex nuts & spring washers – 8 nos. each
- Spanners – 45 mm
- Silencer hose & hose clip
- Grease gun
Performance Characteristics
Pull speed |
Layer 1 – 3500 kg / 0.25 m/sec Layer 6 – 2500 kg / 0.37 m/sec |
Brake |
Pneumatically operated double caliper brake system |
Rope |
Dia 19 mm / length 200 m |
Weight of winch |
1000 kg (approx) |
Air motor drive |
IDMK – 8 |
Power |
11.7 kW |
Speed |
2000 rpm |
Air consumption |
13.5 Nm3/min |
Operating pressure |
6 bar |
Air hose size (mm ID) |
32 mm |
Air inlet |
1 1/2″ BSP |
Caution
This winch is not designed for personnel transport.
Specifications subject to change without prior notice.
